Small flat objects & signs
Personalise suitable items that fit the print area and height limits.
Original price was: £6,800.00.£6,120.00Current price is: £6,120.00.
+vat
Best for: A3 object personalisation, roll-media work and UV crystal labels.
Choose a compact hybrid UV platform with an A3 flatbed, CCD positioning and optional fixtures for roll and cylindrical work.
Flatbed, roll and crystal-label uses need the right configuration. Roll devices and the cylinder fixture are listed as optional.
Prices exclude VAT.
Hybrid A3 UV printing
The GD-A301UV combines a 297 × 420 mm flatbed area with configuration-dependent roll-media and crystal-label applications. Specify the ink channels and optional fixtures around your actual products.
What you can make
Personalise suitable items that fit the print area and height limits.
Specify the required film device or roll fixture for the selected transfer or label workflow.
Use the optional cylinder fixture for suitable items within its separately listed dimensions.
Application examples depend on the correct configuration, consumables and finishing process. Test the actual material before production.
Know the machine
| Specification | Details |
|---|---|
| Printing modes | Hybrid flatbed, roll media and crystal labels; configuration-dependent |
| Flatbed print area | 297 × 420 mm |
| Print height | 0–80 mm |
| Printhead | 1 Epson I3200(8)-U1HD |
| Ink | UV-curing ink; channel configuration to be confirmed |
| UV DTF film width listed | Up to 300 mm; confirm required film device |
| Connection | Network cable |
| Supported files | TIFF, JPG, EPS, PDF and PNG |
| Printer dimensions | 900 × 1010 × 600 mm (L × W × H) |
| Net weight | 78 kg |
| Power supply | AC 220/110 V, 50–60 Hz; confirm supplied option |
The figures above reproduce the manufacturer specifications listed on this product page. Confirm the supplied configuration and installation requirements in your itemised quotation.
From artwork to finished item
Confirm the item’s size, height and material. Test adhesion on the actual surface or coating.
Specify the required ink channels and flatbed, film-roll or cylinder arrangement.
Prepare artwork and fixtures for the job, then approve a sample before repeating the process.
Before you order
An application or optional fixture shown in the catalogue does not establish what is included. Have the supplied equipment, consumables, software and services clearly itemised.
The source lists alternative channel configurations. Confirm the exact CMYK, white, varnish or light-colour arrangement.
The front/rear AB-film device, roll fixture and cylinder fixture are optional. Itemise only the devices you need.
Cylinder fixture: 25–80 mm diameter and 20–210 mm length. Separate roll fixture: 30–250 mm paper width with a 3-inch core.
UV DTF film is listed separately up to 300 mm. Confirm the required film device, RIP licence and consumables.
A few useful answers
Match the machine to your actual materials and finished product. A representative sample can help confirm the setup you need.
It is a hybrid platform. The brochure describes flatbed, roll and crystal-label use with the right optional fixtures and configuration.
The fixture panels identify it as optional. Confirm inclusion and your intended item dimensions in the quotation.
The sheet shows alternative channel configurations. Ask for the exact CMYK, white, varnish or light-colour setup needed for your products.
No. The separate roll fixture lists 30–250 mm paper width and a 3-inch core. UV DTF film is listed separately up to 300 mm. Confirm the correct device for your media.
Material examples do not guarantee adhesion on every surface. Check preparation requirements and test the actual item, especially coated or treated products.
Related products
Compare the relevant supplies, services and alternative equipment below. Confirm consumable compatibility with the exact configuration before ordering.

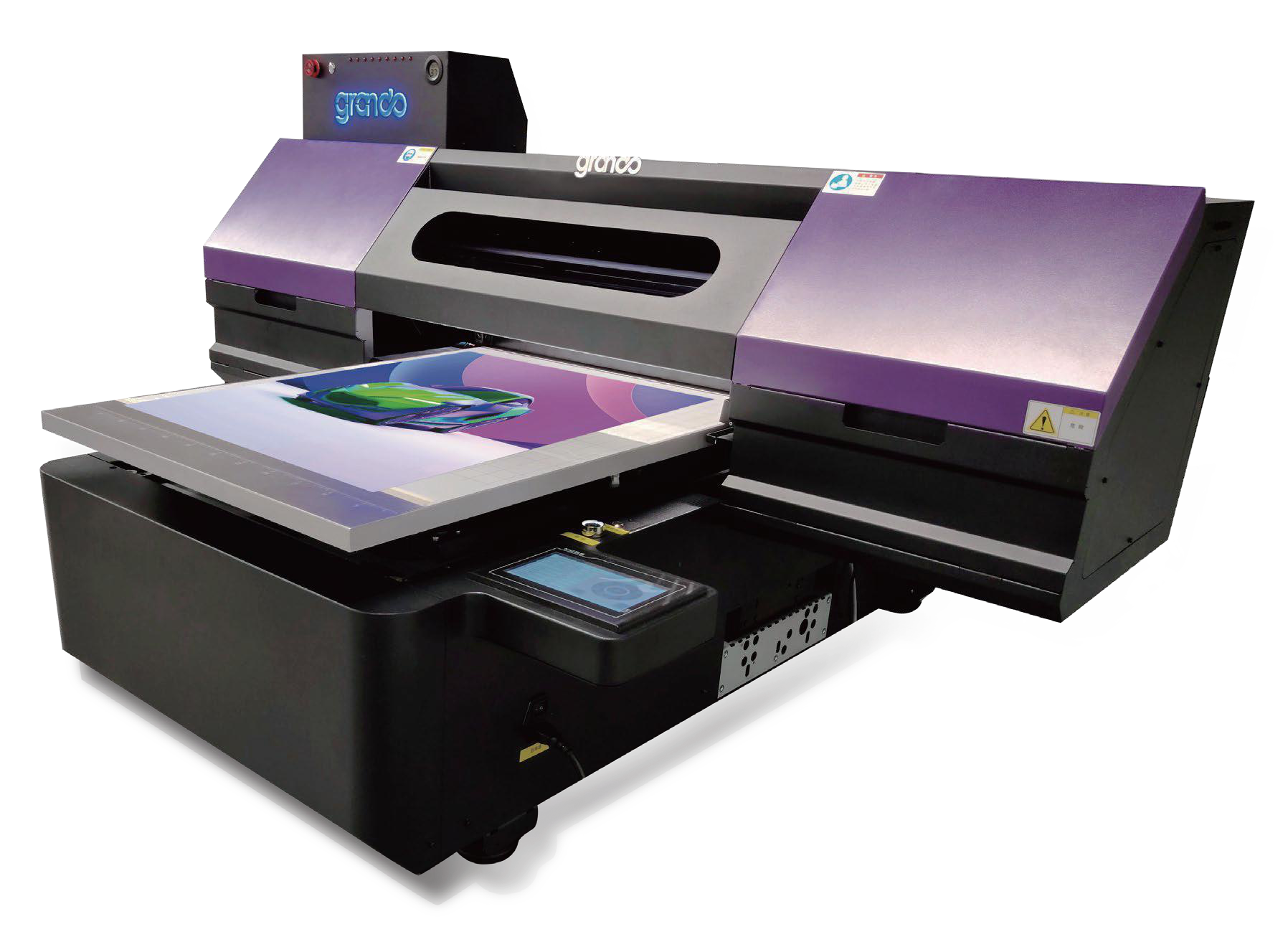

A larger 600 × 900 mm flatbed with separately specified transfer applications.
Confirm the exact ink formulation and head configuration before ordering.
Use only where the quoted channel configuration and approved ink setup support it.
Talk through your application
Tell us the products, surface materials and dimensions you want to print. Include any roll-media or cylindrical work so the correct fixtures can be specified.
Discuss your setupCall 01324 610156 or email sales@dtfsupplies.co.uk.

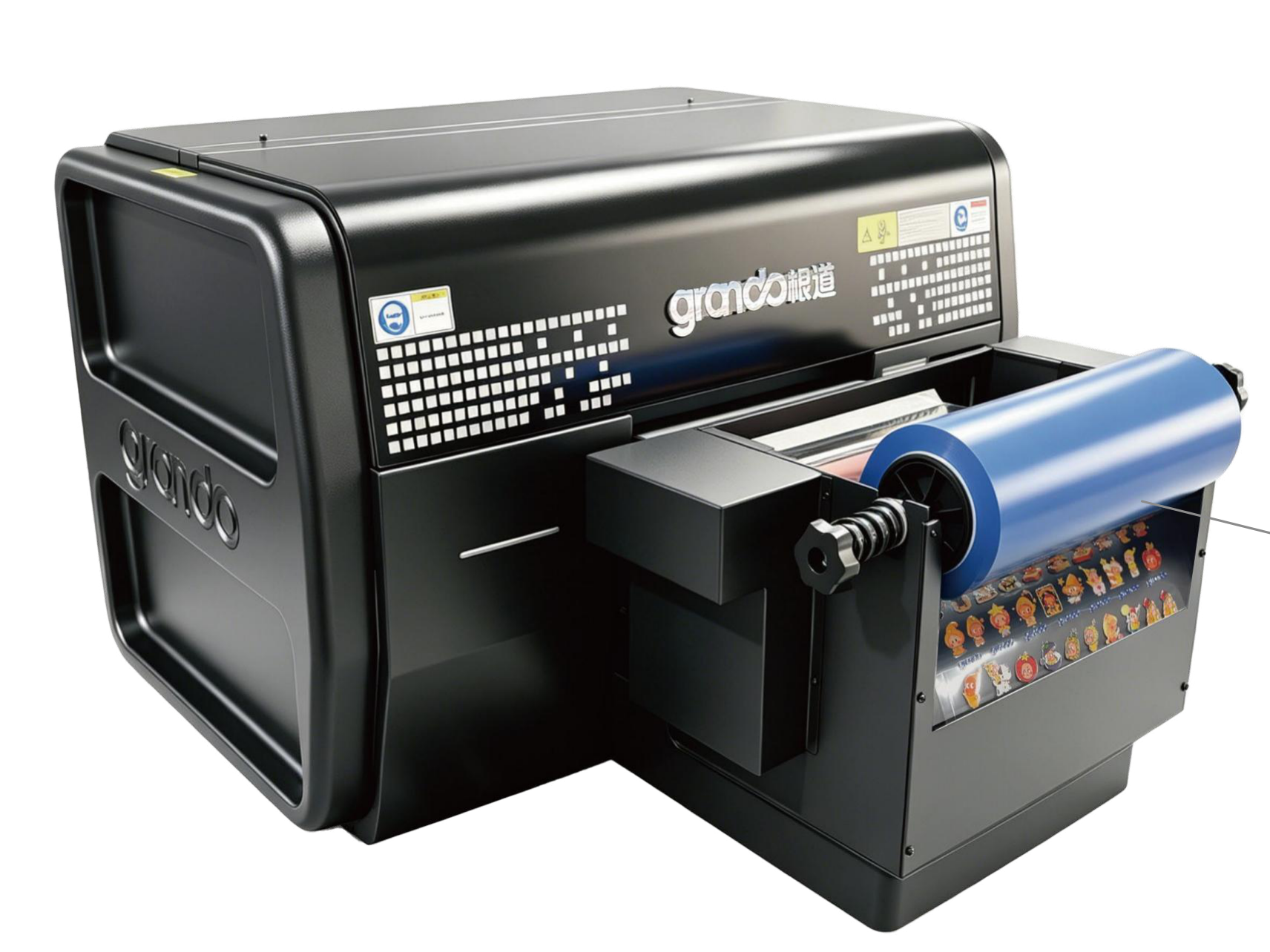

The Grando GD-A301UV is a hybrid UV printer for flatbed printing, roll media and crystal labels. Its 297 × 420 mm area suits smaller personalised items and compact layouts, with CCD vision for recognition and alignment.
Select the machine around the products you plan to make. The brochure lists alternative ink configurations and optional fixtures, so the required flatbed, roll and cylindrical setup should be specified in the quotation.
| Specification | Details |
|---|---|
| Printing modes | Hybrid flatbed, roll media and crystal labels; configuration-dependent |
| Flatbed print area | 297 × 420 mm |
| Print height | 0–80 mm |
| Printhead | 1 Epson I3200(8)-U1HD |
| Ink | UV-curing ink; channel configuration to be confirmed |
| UV DTF film width listed | Up to 300 mm; confirm required film device |
| Connection | Network cable |
| Supported files | TIFF, JPG, EPS, PDF and PNG |
| Printer dimensions | 900 × 1010 × 600 mm (L × W × H) |
| Net weight | 78 kg |
| Power supply | AC 220/110 V, 50–60 Hz; confirm supplied option |
Figures above are manufacturer specifications. Confirm the supplied configuration and installation requirements in your quotation.
For flatbed work, check item size, height, surface preparation and ink configuration. Test the actual product; material examples do not guarantee adhesion on every coated or treated surface.
The front and rear AB-film roll device, roll fixture and cylinder fixture are listed as optional. Confirm the device needed for your application and its inclusion in the quotation.
The cylinder fixture lists 25–80 mm diameter and 20–210 mm length. The separate roll fixture lists 30–250 mm paper width with a 3-inch core; UV DTF film is separately listed up to 300 mm. Confirm the device for your intended media.
Have ink channels, fixtures, RIP and consumables itemised. White, varnish and light-colour channels appear in alternative configurations and should not all be assumed present together.
It is a hybrid platform. The brochure describes flatbed, roll and crystal-label use with the right optional fixtures and configuration.
The fixture panels identify it as optional. Confirm inclusion and your intended item dimensions in the quotation.
The sheet shows alternative channel configurations. Ask for the exact CMYK, white, varnish or light-colour setup needed for your products.
Tell us what you want to print, the material and dimensions, and your expected order volume. Ask for an itemised quotation, call 01324 610156 or email sales@dtfsupplies.co.uk.
| Model | GD-A301UV |
|---|---|
| Format | A3 hybrid UV printer |
| Printing area | 297 × 420 mm |
| Printhead | 1 Epson I3200(8)-U1HD |
| Ink type | UV-curing ink |
| Listed printing modes | Flatbed, roll and crystal labels; configuration-dependent |
| Vision system | CCD |
| Ink configuration | Confirm with your quotation |
