Personalised garments
Create T-shirt graphics and small-run workwear designs within a 300 mm print width.
Original price was: £3,666.00.£2,999.00Current price is: £2,999.00.
+vat
Best for: small-batch T-shirts, workwear and personalised textile transfers.
Print garment designs onto PET film in a compact, roll-fed desktop format.
Print to film, apply powder, cure, then heat-press onto a compatible garment.
Prices exclude VAT.
Desktop garment transfers
Build a compact transfer workflow around the A3-301’s 300 mm print width. Print your designs onto PET film, then powder, cure and heat press them onto suitable garments.
What you can make

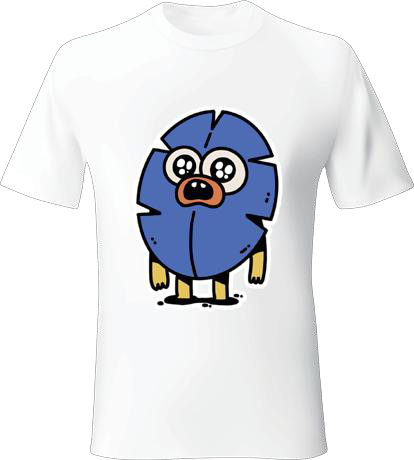

Create T-shirt graphics and small-run workwear designs within a 300 mm print width.

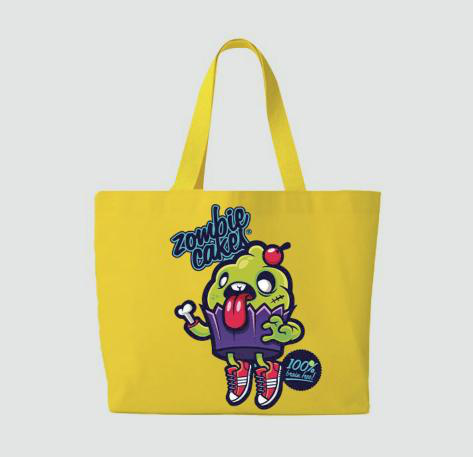

Prepare logos and illustrations for suitable tote bags and fabric accessories.
Arrange individual designs or smaller transfers to suit the available film width.
Application examples depend on the correct configuration, consumables and finishing process. Test the actual material before production.
Know the machine
| Specification | Details |
|---|---|
| Printing process | DTF printing onto PET transfer film |
| Maximum print width | 300 mm |
| Media | 300 mm PET film |
| Printhead | 1 Epson F1080 |
| Ink | Water-based transfer ink, CMYK + white |
| Manufacturer-rated print modes | 2 m²/h at 624 × 1800 dpi, 5 pass; 1.7 m²/h at 624 × 2160 dpi, 6 pass; 1.5 m²/h at 624 × 2520 dpi, 7 pass |
| Listed dimensions | 820 × 560 × 350 mm; sheet label: “with stand” |
| Listed weight | 58 kg; net or packed weight not identified |
| Power supply | AC 110 V / 220 V, 50/60 Hz |
| Operating environment | 20–35°C; 35–65% RH |
The figures above reproduce the manufacturer specifications listed on this product page. Confirm the supplied configuration and installation requirements in your itemised quotation.
From artwork to finished item
Set the finished design size and confirm the file and RIP requirements for your supplied setup.
Use compatible PET film, transfer ink and adhesive powder. Follow the confirmed curing process for those consumables.
Heat press onto a suitable garment using verified settings. Test the actual fabric before a production run.
Before you order
An application or optional fixture shown in the catalogue does not establish what is included. Have the supplied equipment, consumables, software and services clearly itemised.
Confirm the A3-301 cartridge setup, film and adhesive powder for the supplied machine.
Have the dryer or oven and heat press itemised in the quotation.
Confirm installed dimensions, safe access, electrical supply and the stated operating environment.
Ask which RIP licence, installation, training and support are included, and request the written warranty terms.
A few useful answers
Match the machine to your actual materials and finished product. A representative sample can help confirm the setup you need.
It prints onto PET film. The design is transferred to the garment after powdering, curing and heat pressing.
The A3-301 specification identifies one Epson F1080 printhead.
The A3-301 has a 300 mm print width and one head. The Y402 has a 420 mm print width and two i1600 heads. Compare the full workflows against your design sizes and order volume.
The catalogue offers dedicated A3-301 cartridges. Confirm the ink supply arrangement for your machine before ordering or substituting consumables.
Compare your largest design, usable print width, complete finishing process and demonstrated output with your own artwork. Print-mode ratings are not finished-garment production rates.
Related products
Compare the relevant supplies, services and alternative equipment below. Confirm consumable compatibility with the exact configuration before ordering.
Dedicated CMYK + white cartridge product for this model. Check the supplied cartridge arrangement.
Match the film width and confirm suitability for your selected setup.
Model-specific waste-ink tank. Follow the machine’s replacement procedure.
Talk through your application
Tell us your largest artwork size, garment types and expected order volume. We can discuss the complete printing and finishing setup.
Discuss your setupCall 01324 610156 or email sales@dtfsupplies.co.uk.
| Specification | Details |
|---|---|
| Printing process | DTF printing onto PET transfer film |
| Maximum print width | 300 mm |
| Media | 300 mm PET film |
| Printhead | 1 Epson F1080 |
| Ink | Water-based transfer ink, CMYK + white |
| Manufacturer-rated print modes | 2 m²/h at 624 × 1800 dpi, 5 pass; 1.7 m²/h at 624 × 2160 dpi, 6 pass; 1.5 m²/h at 624 × 2520 dpi, 7 pass |
| Listed dimensions | 820 × 560 × 350 mm; sheet label: “with stand” |
| Listed weight | 58 kg; net or packed weight not identified |
| Power supply | AC 110 V / 220 V, 50/60 Hz |
| Operating environment | 20–35°C; 35–65% RH |
The Grando A3-301 is a desktop DTF printer for small batches of personalised garments and textile accessories. Its 300 mm print width suits individual designs and compact transfer layouts.
Designs are printed onto PET transfer film and applied to the garment using the appropriate powder, curing and heat-press process.
| Specification | Details |
|---|---|
| Printing process | DTF printing onto PET transfer film |
| Maximum print width | 300 mm |
| Media | 300 mm PET film |
| Printhead | 1 Epson F1080 |
| Ink | Water-based transfer ink, CMYK + white |
| Manufacturer-rated print modes | 2 m²/h at 624 × 1800 dpi, 5 pass; 1.7 m²/h at 624 × 2160 dpi, 6 pass; 1.5 m²/h at 624 × 2520 dpi, 7 pass |
| Listed dimensions | 820 × 560 × 350 mm; sheet label: “with stand” |
| Listed weight | 58 kg; net or packed weight not identified |
| Power supply | AC 110 V / 220 V, 50/60 Hz |
| Operating environment | 20–35°C; 35–65% RH |
Figures above are manufacturer specifications. Confirm the supplied configuration and installation requirements in your quotation.
Plan for suitable PET film, transfer ink, adhesive powder, curing equipment and a heat press. Curing and pressing settings depend on the consumables and garment.
The sheet lists cotton, polyester and other application materials. Test the actual item before production, particularly heat-sensitive fabrics and coated surfaces.
Have the dryer or oven, heat press, RIP licence and starter consumables itemised in your quotation. Rated print speeds describe the stated modes, rather than finished-garment output.
It prints onto PET film. The design is transferred to the garment after powdering, curing and heat pressing.
The A3-301 specification identifies one Epson F1080 printhead.
The A3-301 has a 300 mm print width and one head. The Y402 has a 420 mm print width and two i1600 heads. Compare the full workflows against your design sizes and order volume.
Tell us what you want to print, the material and dimensions, and your expected order volume. Ask for an itemised quotation, call 01324 610156 or email sales@dtfsupplies.co.uk.
